XLCT-LOW系列超薄中空型液压扭矩扳手

产品描述

产品线： XLCT-LOW系列

● 可360°×180°旋转的油管接头，无使用空间限制，自由操作
● 一体成型动力头，提高使用寿命；一只动力头可配合多种工作头使
用，工作范围广
● 包容设计，安全性最佳
● 轻、薄、短、销、扭力大，适应各种“高难度”空间

认为安全
制造商的额定载荷和行程是最大安全限制。良好做法鼓励仅使用这些评级的 80%！

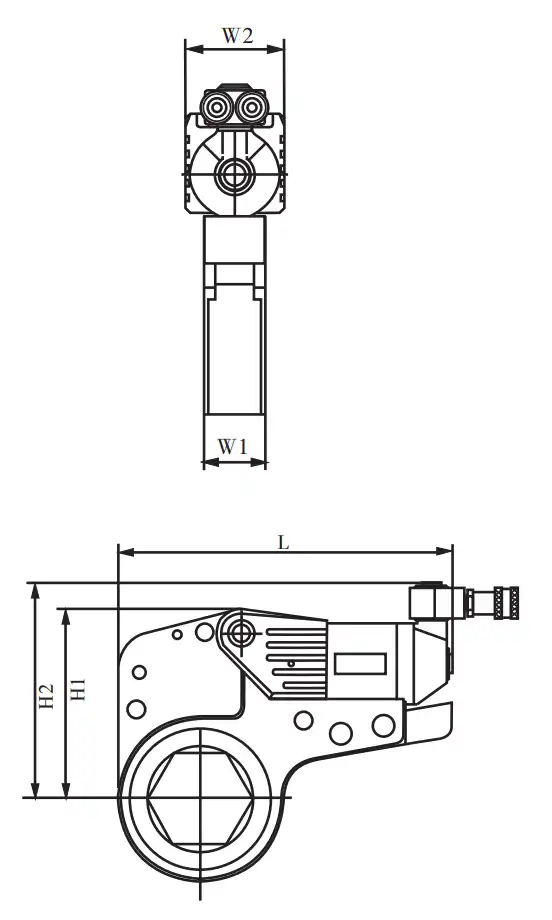

尺寸

产品系列

型号	2XLCT-LOW		4XLCT-LOW		8XLCT-LOW		14XLCT-LOW	18XLCT-LOW	30XLCT-LOW
扭矩范围(N.M)	232~2328	241~2414	585~5858	647~6474	1094~10941	1177~11774	1852~18521	2695~26958	4188~41882	4459~44593
螺母对边范围(S)	19~55	60	34~65	70~80	41~95	100~105	50~117	65~130	110~155	160~175
动力头重量(Kg)	0.9	0.9	1.7	1.7	3	3	4.6	6.5	10.4	10.4
工作头重量(Kg)	1.5	1.5	3.4	3.4	6.3	6.3	11.4	14.3	20.5	20.5
L（mm)	196	196	258	263	310	311	360	388	430	441
H1（mm)	126	129	163	173	192	201	239	264	303	315
H2（mm)	102	105	136	146	168	177	204	231	272	285
W1（mm)	32	32	42	42	53	53	64	71	85	85
W2（mm)	51	51	66	66	83	83	99	109	131	131

可定制各种特殊规格的驱动轴，驱动轮及反作用力臂。

XLCT-LOW中空型扳手工作头数据表

中空扳手工作头采用高科技航天材料〈铝钛合金) 及超高强度合金钢制造
容易接入XLCT-LOW扳手动力头
可定制非标和特制设计的中空工作头

螺栓直径	螺母对边	2XLCT-LOW mm	R	A	4XLCT-LOW	R	A	8XLCT-LOW	R	A	14XLCT-LOW	R	A	18XLCT-LOW	R	A	30XLCT-LOW	R	A
12	19	2XLCT-LOW-19	27	16
14	22	2XLCT-LOW-22	27	14
18	27	2XLCT-LOW-27	27	11
20	30	2XLCT-LOW-30	29	12
	32	2XLCT-LOW-32	29	11
22	34	2XLCT-LOW-34	31	11	4XLCT-LOW-34	36	16
24	36	2XLCT-LOW-36	31	10	4XLCT-LOW-36	36	15
27	41	2XLCT-LOW-41	34	10	4XLCT-LOW-41	39	15	8XLCT-LOW-41	46	23
30	46	2XLCT-LOW-46	37	10	4XLCT-LOW-46	42	15	8XLCT-LOW-46	46	20
33	50	2XLCT-LOW-50	40	11	4XLCT-LOW-50	44	15	8XLCT-LOW-50	46	18	14XLCT-LOW-50	60	31
36	55	2XLCT-LOW-55	43	11	4XLCT-LOW-55	46	15	8XLCT-LOW-55	50	18	14XLCT-LOW-55	60	28
39	60	2XLCT-LOW-60	46	11	4XLCT-LOW-60	50	14	8XLCT-LOW-60	52	17	14XLCT-LOW-60	60	25
42	65				4XLCT-LOW-65	53	15	8XLCT-LOW-65	55	17	14XLCT-LOW-65	60	22	18XLCT-LOW-65	62	23
45	70				4XLCT-LOW-70	56	15	8XLCT-LOW-70	58	20	14XLCT-LOW-70	60	20	18XLCT-LOW-70	65	23
48	75				4XLCT-LOW-75	59	15	8XLCT-LOW-75	60	17	14XLCT-LOW-75	63	19	18XLCT-LOW-75	67	22
52	80				4XLCT-LOW-80	61	15	8XLCT-LOW-80	63	16	14XLCT-LOW-80	66	19	18XLCT-LOW-80	70	22
56	85							8XLCT-LOW-85	66	16	14XLCT-LOW-85	69	19	18XLCT-LOW-85	72	23
60	90							8XLCT-LOW-90	69	16	14XLCT-LOW-90	72	19	18XLCT-LOW-90	74	22
64	95							8XLCT-LOW-95	71	16	14XLCT-LOW-95	74	19	18XLCT-LOW-95	77	23	XLCT-LOW-95	89	34
68	100							8XLCT-LOW-100	75	17	14XLCT-LOW-100	77	19	18XLCT-LOW-100	79	22	XLCT-LOW-100	89	31
72	105							8XLCT-LOW-105	78	17	14XLCT-LOW-105	80	19	18XLCT-LOW-105	82	23	XLCT-LOW-105	89	38
76	110										14XLCT-LOW-110	83	19	18XLCT-LOW-110	84	22	XLCT-LOW-110	89	25
80	115										14XLCT-LOW-115	87	20	18XLCT-LOW-115	89	24	XLCT-LOW-115	95	28
	117										14XLCT-LOW-117	87	19	18XLCT-LOW-117	89	23	XLCT-LOW-117	95	27
85	120													18XLCT-LOW-120	92	23	XLCT-LOW-120	95	25
	125													18XLCT-LOW-125	95	23	XLCT-LOW-125	104	32
90	130													18XLCT-LOW-130	98	23	XLCT-LOW-130	104	29
95	135																XLCT-LOW-135	104	26
	140																XLCT-LOW-140	110	29
100	145																XLCT-LOW-145	110	26
105	150																XLCT-LOW-150	116	29
110	155																XLCT-LOW-155	116	26
	160																XLCT-LOW-160	128	36
115	165																XLCT-LOW-165	128	33
120	170																XLCT-LOW-170	128	30
	175																XLCT-LOW-175	128	27

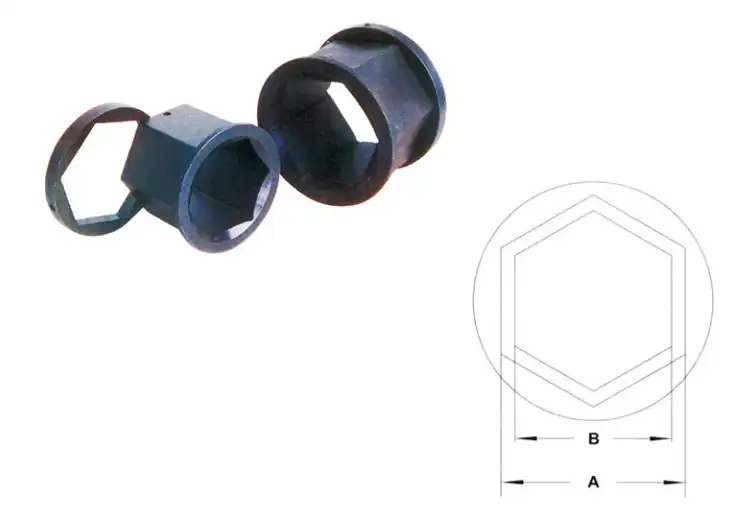

XLCT-LOW中空型扳手过渡套

超强合金钢制造
可定制各种规格的过度套

扳手型号	工作头型号	过渡套规格型号							锁紧环型号
扳手型号	工作头型号	适用对边(mm)	型号	A/B(mm)	型号	A/B(mm)	型号	A/B(mm)	锁紧环型号
2XLCT-LOW	2XCT-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	2XCT-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	2XCT-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	2XCT-36	36	2G3630	36/30	2G3627	36/27			H-36
	2XCT-32	32	2G3227	32/27					H-32
	2XCT-30	30
	2XCT-27	27
4XLCT-LOW	4XCT-65	65	4G6555	65/55	4G6550	65/50	4G6546	65/46	H-65
	4XCT-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	4XCT-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	4XCT-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	4XCT-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	4XCT-41	41	4G4132	41/32	4G4130	41/30	4G4127	41/27	H-41
	4XCT-36	36	4G3630	36/30	4G3627	36/27			H-36
	4XCT-32	32	4G3227	32/27					H-32
	4XCT-30	30
	4XCT-27	27
8XLCT-LOW	8XCT-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	8XCT-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H=85
	8XCT-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	8XCT-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	8XCT-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	8XCT-65	65	8G6555	65/55	8G6550	65/50	8G6546	65/46	H-65
	8XCT-60	60	8G6050	60/50	8G6064	60/46			H-60
	8XCT-55	55	8G5546	55/46	8G5541	55/41			H-55
	8XCT-50	50
14XLCT-LOW	14XCT-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	14XCT-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	14XCT-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/90	H-105
	14XCT-100	100	14G10090	100/90	14G10085	100/85	14G10080	100/80	H-100
	14XCT-95	95	14G9585	95/85	14G9580	9580	14G9575	95/75	H-95
	14XCT-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	14XCT-85	85	14G8575	85/75	14G8570	85/70	14G8565	85/65	H-85
	14XCT-80	80	14G8070	80/70	14G8065	80/65			H-80
	14XCT-75	75	14G7565	75/65					H-75
	14XCT-70	70
	14XCT-65	65
30XLCT-LOW	30XCT-155	155	30G155145	155/145	30G155130	155/130	30G155120	155/120	H-155
	30XCT-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
	30XCT-130	130	30G130120	130/120	30G130115	130/115	30G130110	130/110	H-130
	30XCT-120	120	30G120110	120/110	30G120105	120/105	30G120100	120/100	H-120
	30XCT-115	115	30G115105	115/105	30G115100	115/100	30G11595	115/95	H-115
	30XCT-110	110	30G110100	110/100	30G11095	110/95	30G11090	110/90	H-110
	30XCT-105	105	30G10595	105/95	30G10590	105/90	30G10080	100/80	H-105
	30XCT-100	100	30G10090	100/90	30G10085	100/85	30G10080	100/80	H-100
	30XCT-95	95	30G9585	95/85	30G9580	95/80			H-95
	30XCT-90	90	30G9080	90/80					H-90
	30XCT-85	85
	30XCT-80	80
